1
$1.6800
$1.6800
10
$1.2600
$12.6000
50
$1.1500
$57.5000
100
$0.9400
$94.0000
250
$0.8800
$220.0000
500
$0.7500
$375.0000
750
$0.7100
$532.5000
1250
$0.6600
$825.0000
2500
$0.6200
$1,550.0000
6250
$0.6000
$3,750.0000
12500
$0.5600
$7,000.0000

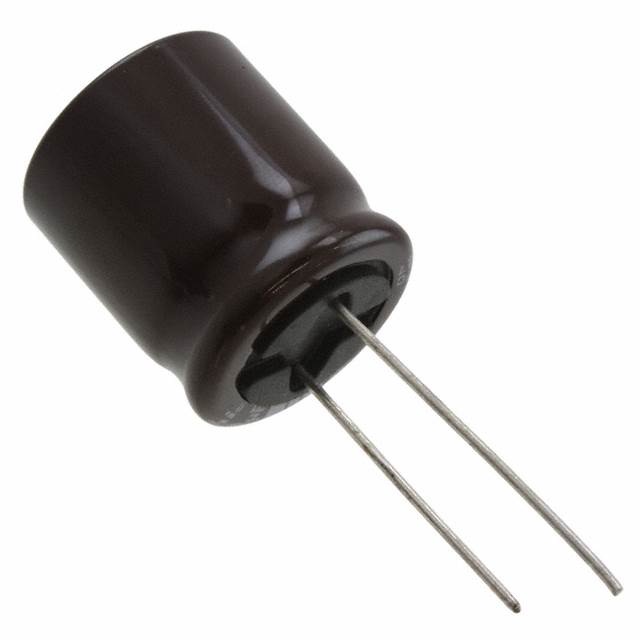

| TYPE | DESCRIPTION |
| Mfr | Nichicon |
| Series | UPM |
| Package | Tape & Box (TB) |
| Product Status | NOT_FOR_NEW_DESIGNS |
| Tolerance | ±20% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | Automotive |
| Lead Spacing | 0.295" (7.50mm) |
| Ratings | AEC-Q200 |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Capacitance | 3300 µF |
| Voltage - Rated | 16 V |
| Impedance | 27 mOhms |
| Ripple Current @ Low Frequency | 1.88 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.09 A @ 10 kHz |
